Bar Support Bracket

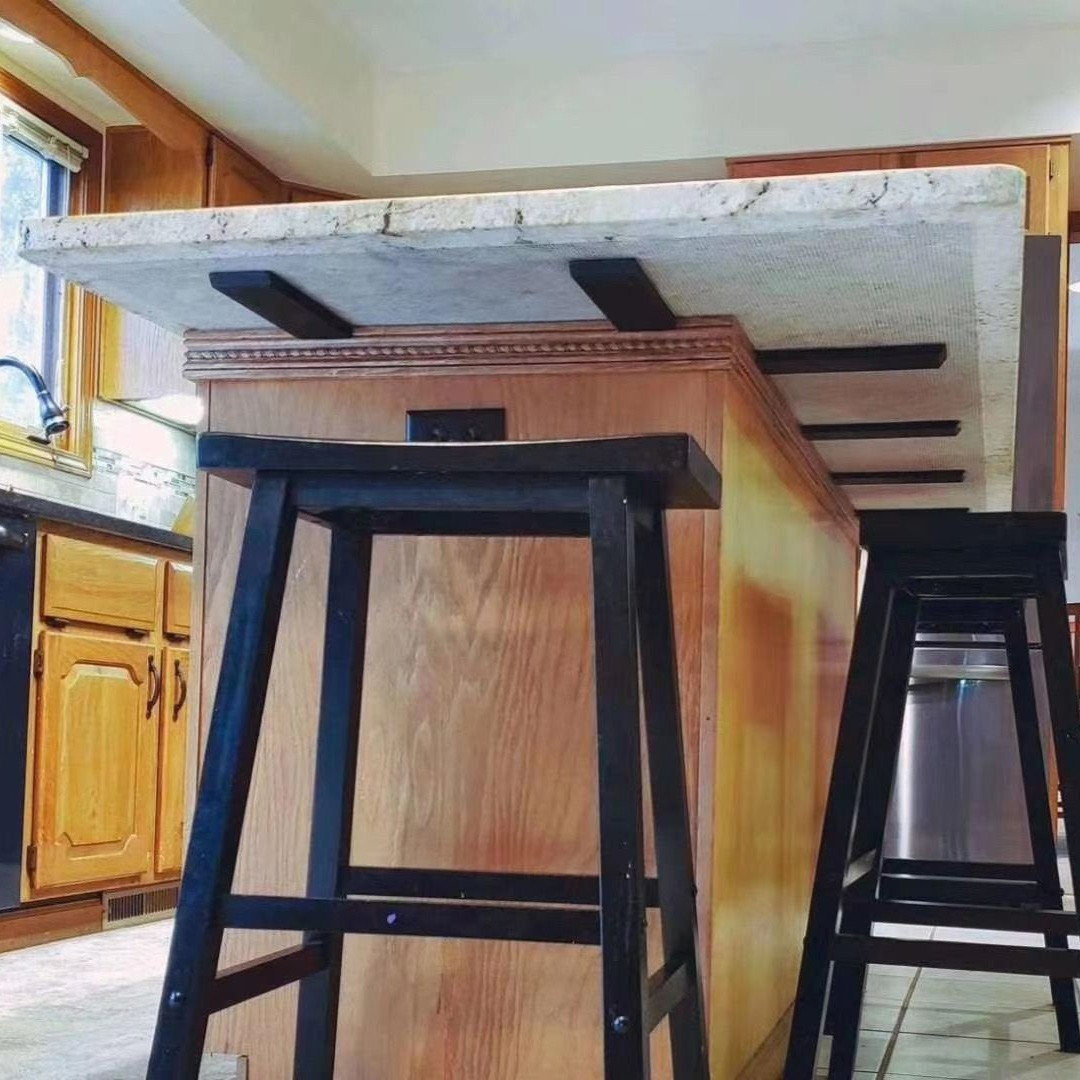

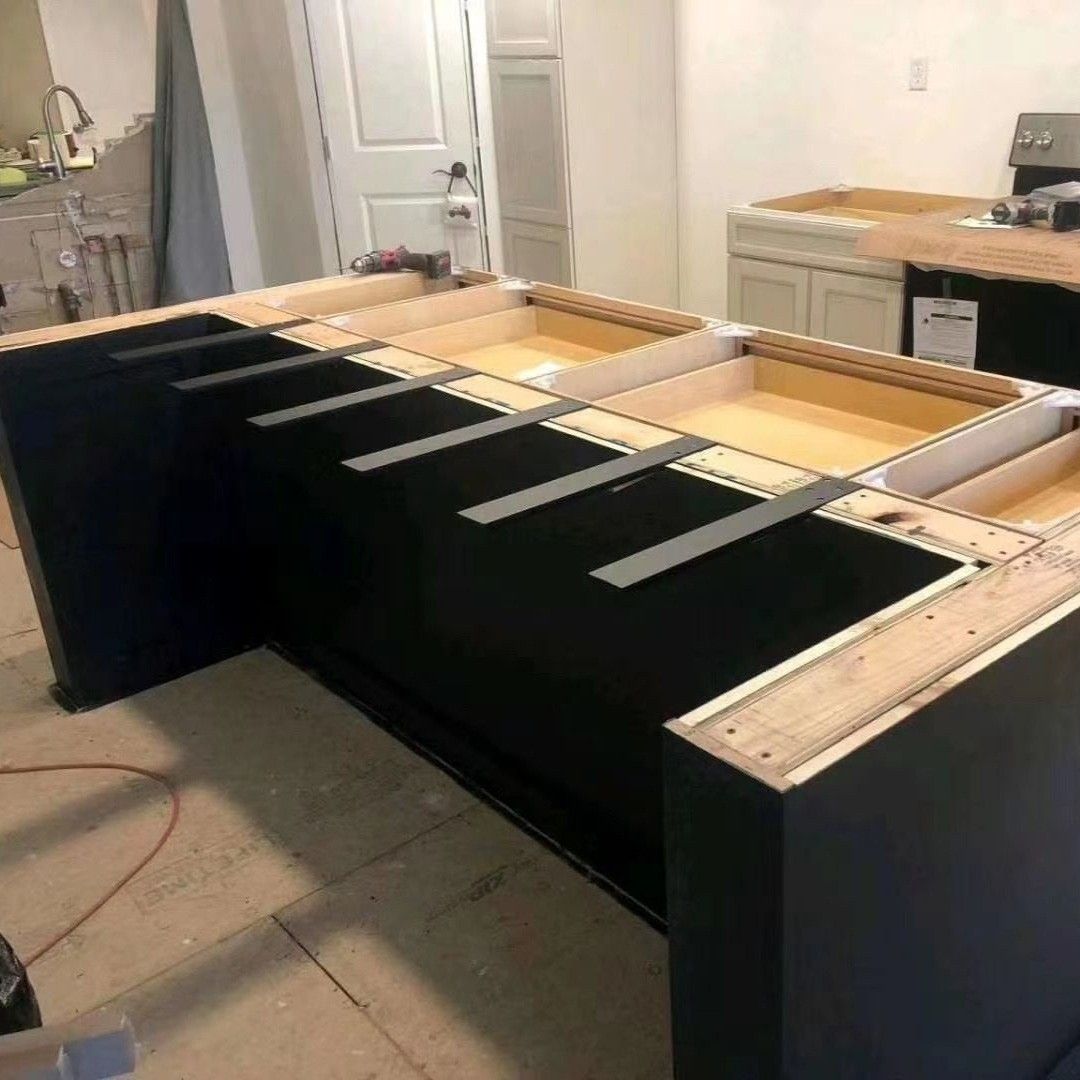

Discover the ultimate solution for perfectly supported, floating countertops. The Iron Supports Hidden Granite Countertop Flat Bracket is expertly engineered for seamless integration into pony walls and raised bar areas, providing robust support that remains completely out of sight. Achieve a sleek, modern aesthetic for your kitchen. or custom space, knowing your countertop is securely anchored by American-made quality.

Specifications at a Glance:

Material: Q235
Thickness: 1/4" (6mm) or 1/2" (12mm)
Width: 2.5" (60mm)
Lengths: 8", 10", 12", 14", 16", 18",21"
Mounting: 4 pre-drilled holes, compatible with #14 x 2.5" Phillips Flat Head Screws (included). Designed for 2x4 or 2x6 framing.
Beveled End: Smooth beveled end for enhanced safety.
Load Capacity: 325lbs ea. Important Note on Load Capacity: The stated carrying capacity of 325 lbs per bracket is achieved only when the bracket is properly mounted to a solid, structurally sound substrate using the included hardware. Ensure fasteners are secured firmly without over-torquing, which could compromise the integrity of the substrate or the fastener itself.
