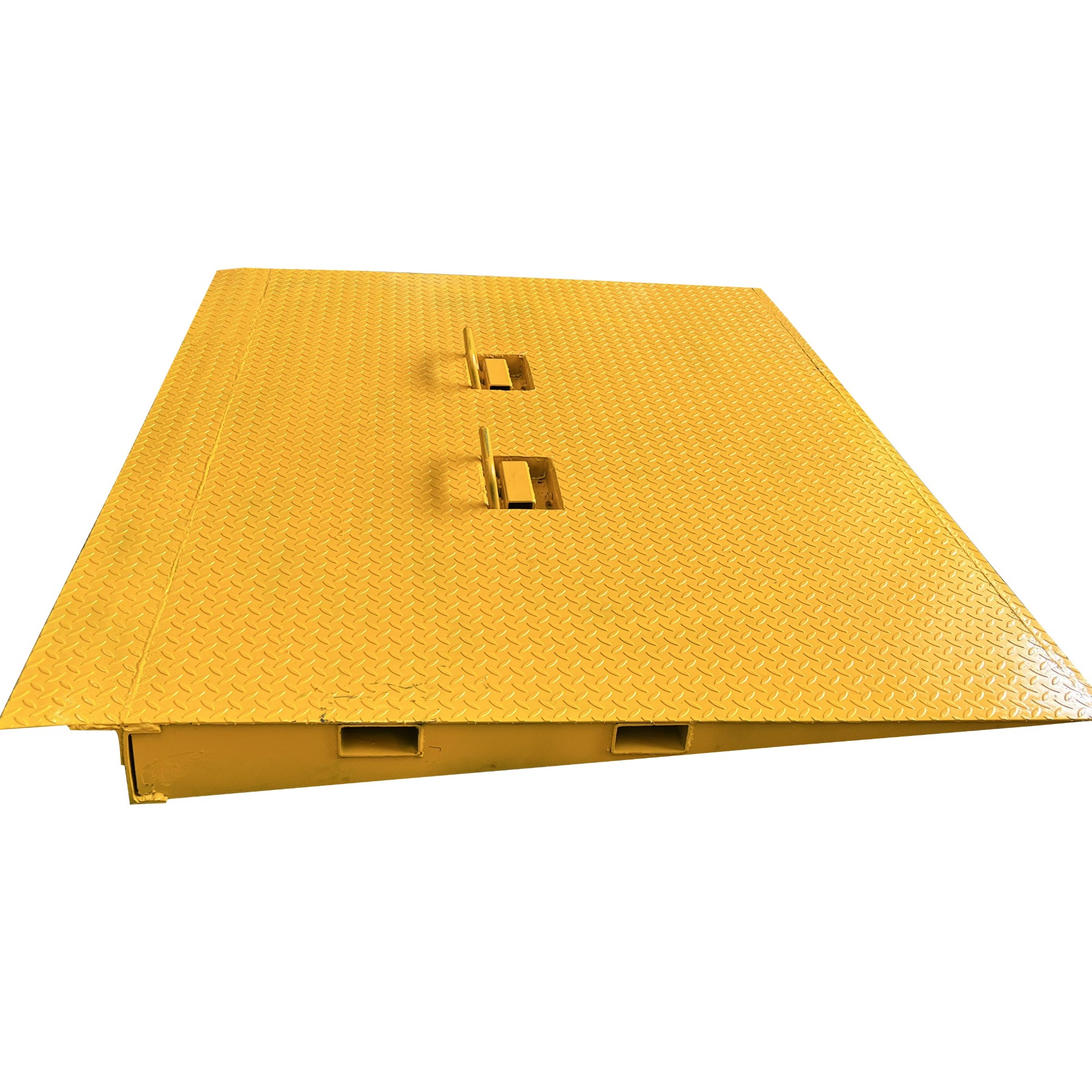

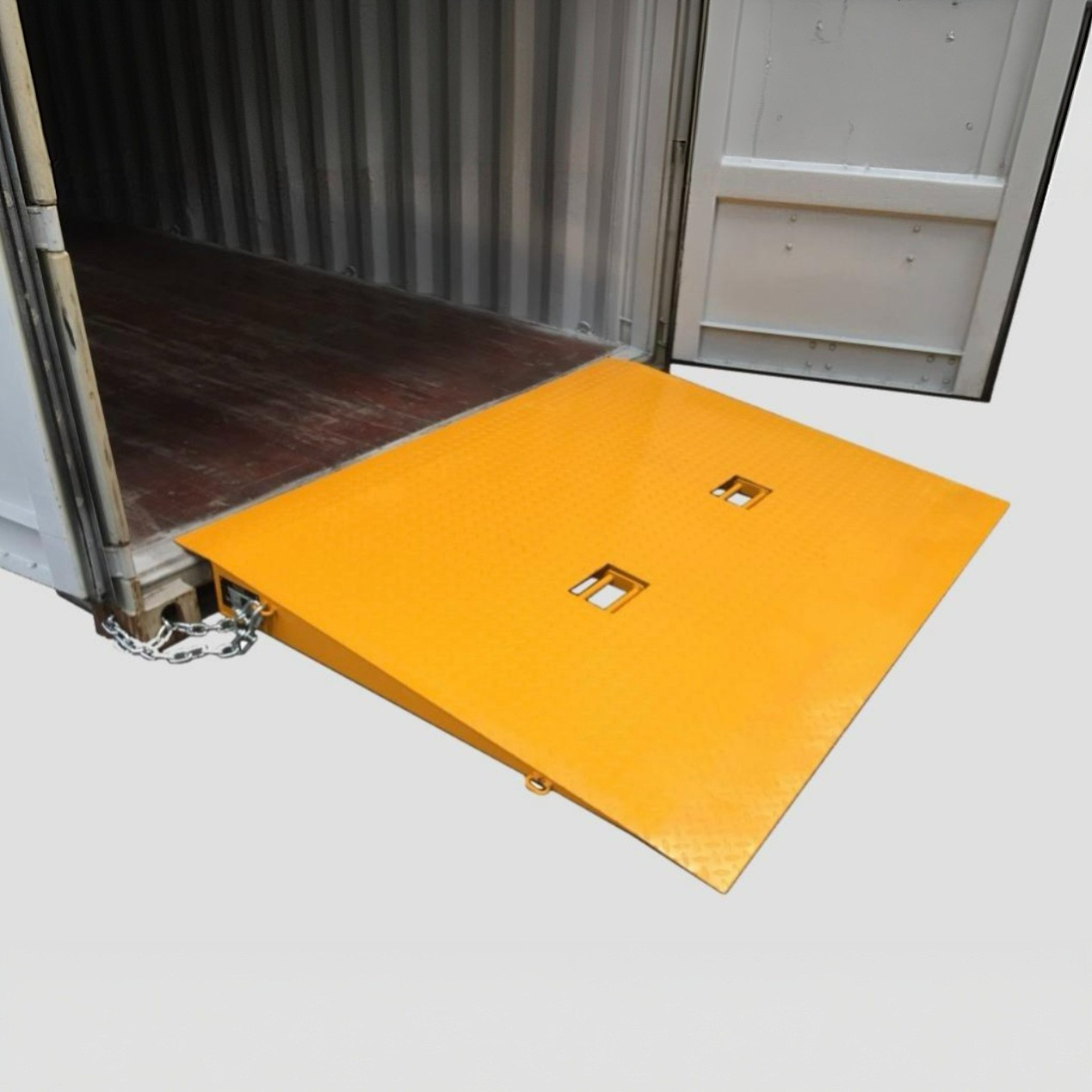

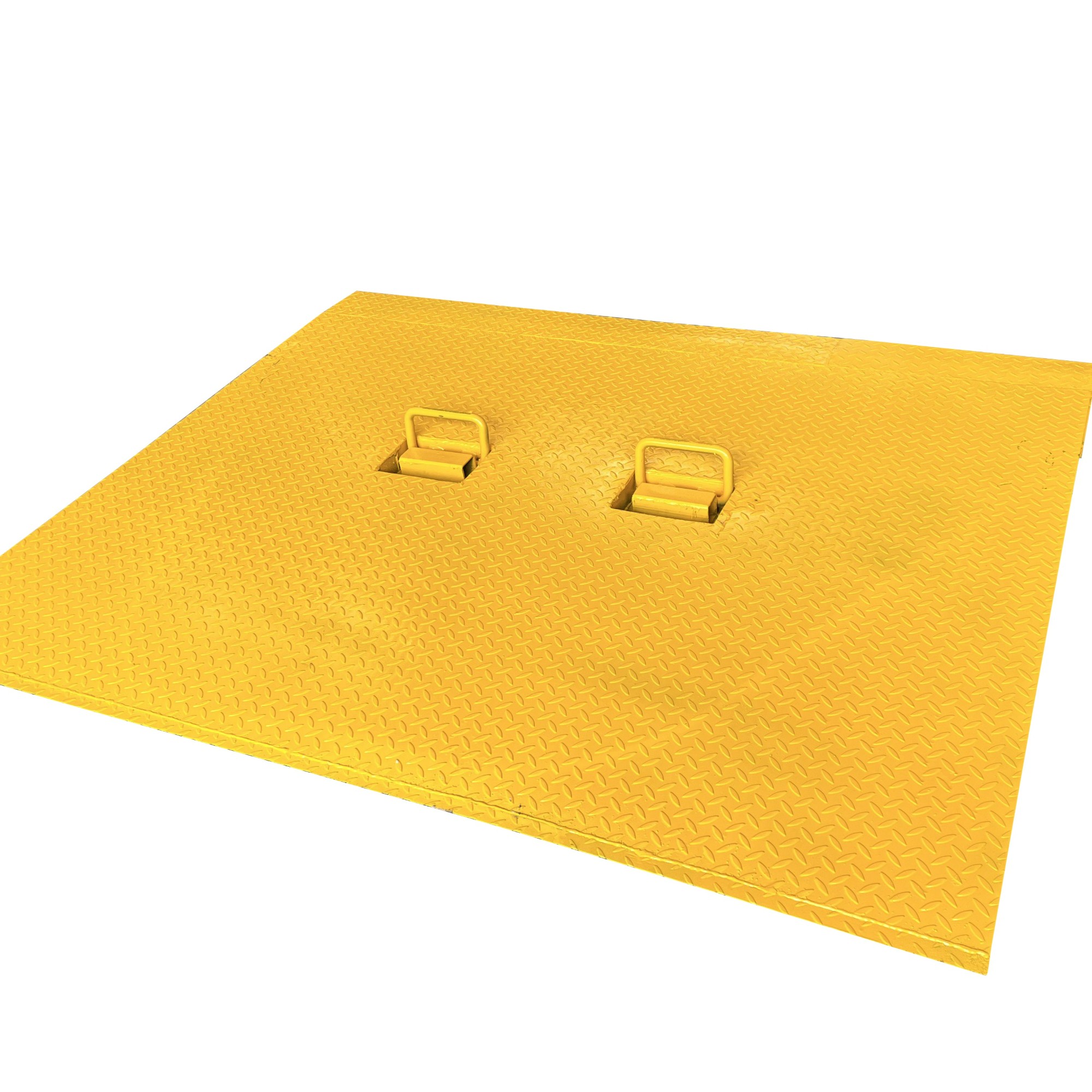

The Container Ramp 10 Tonne Standard Duty has an overall length of 1.5 metres overall allowing easy placement and removal of the first and second line of pallets in a container. Securing safety chains located on both sides of the ramp prevent unintentional disengagement of the ramp from the container.

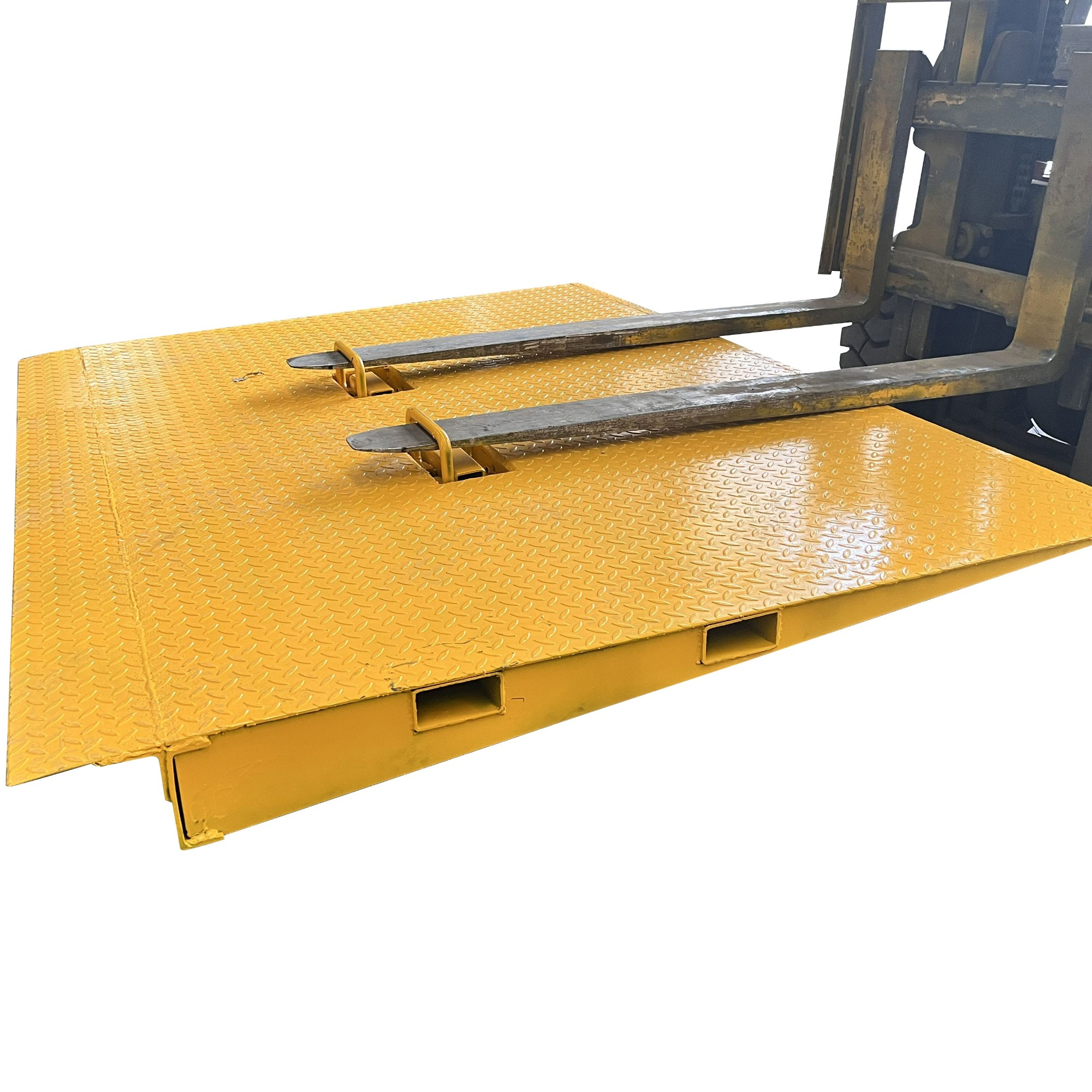

– Movement by simple front entry forklift truck pockets.
– Fork pockets are provided with flip-up front tine pockets for ease of transport.
– Fits any standard 20ft or 40ft flat deck containers.
– Not suitable for refrigerated containers.
– Designed for use on flat concrete surface.
– Supplied with Chain and D Shackle.
– Standard finish is painted Safety Yellow.
| Safe Working Load (SWL) | 10000 kgs |
| Unit Weight | 240 kgs |
| Width | 2200mm |
| Length | 1700mm |
| Flip-Up Tine Pocket Size | 160mm x 60mm |
